D1 resolution
H.264 Real-time DVR Card with MPEG4 Video Format - |
|
 |
|
|
 |
| |
 |
| |
-
High Quality D1 resolution Real-time Display:
30FPS
(NTSC) 20FPS(PAL)
-
High Quality D1 resolution and High Speed Recording:
30FPS (NTSC) 20FPS(PAL)
-
Various Resolutions on Display and
Recording: D1: 704 x 576, CIF: 352 x 288,
QCIF: 176 x 144 (PAL)
D1: 704 x 480, CIF: 352 x 240, QCIF: 176 x
120 (NTSC)
-
Max.
3 cards: 12 video channels (90FPS:NTSC
75FPS:PAL)
-
Recording storage usage: 30-600M per hour
per channel (M/H/C)
-
H.264 Video Compression /
MPEG 4 Video Format /AVI video conversion
-
High performance Techwell chips - high
video resolution, no color distortion, no
delay
-
Support
Multi-Zone Motion Detection, video lose and
link to sensor
-
Support
Multi-PTZ protocols
-
E-Map, Watermark Function
-
1 channels Audio + two-ways audio through
network (Server & Client can talk by
microphone)
-
TV output - video output to CCTV terminal,
monitor or TV.
-
Remote Monitoring through network, CMS
software, client software and I.E. Explorer
-
Multi-level User Management
-
User-friendly Graphic User Interface
-
Support
Multi-language
-
Support Windows 2000/2003/XP/Vista
-
Software Logo can be user-defined (Well
developed
Server and Client software)
|
 |
| |
-
Securities Companies, Change Booths,
Casinos, Pawnshops, Jewelers, Galleries
-
Exhibition Halls, Department Stores,
Convenience Stores
-
Discount Offices, Hospitals, Police
Stations, Subway Stations
-
Airports, Banks ... etc.
|
 |
| |
|
|
| |
 |
| |
|
Model |

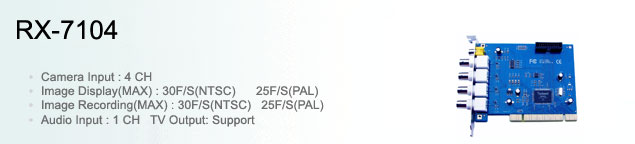

RX-7104
|
|
Video |
Video Signal System |
NTSC / PAL |
|
Compression Format |
H.264 / MPEG4 |
|
Input |
1-4ch BNC（1.0Vp-p,75Ω） |
|
Output |
VGA / TV |
|
Audio |
1
ch |
|
Operating System |
Windows 2000 / XP / 2003 /
Vista |
|

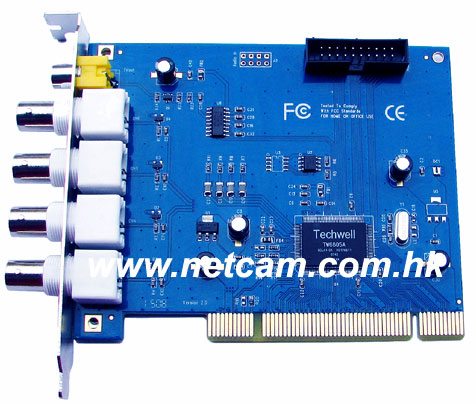

Decode chip |
Techwell 6805 |
|
Display |
Frame rate |
NTSC：120FPS
PAL：100FPS |
|
Resolution |
D1 : 704?/font>576
(PAL), 704 x 480 (NTSC) |
|
Screen division |
1、4、9、16
and user-defined picture division
and length-to-width ratio. |
|
Record |
Frame rate |
NTSC：30FPS
PAL：25FPS |
|
Resolution |
D1: 704 x 576, CIF: 352 x 288,
QCIF: 176 x 144 (PAL)
D1: 704 x 480, CIF: 352 x 240, QCIF: 176 x 120
(NTSC) |
|
Code rate |
64K-2Mbps option |
|
Recording mode |
manual, time, motion
detective, sensor, pre-recording |
|
Playback |
Multi-channel |
1-12 ch playback in time |
|
Screen Mode |
1,4,9,16 fast playback,
single frame playback |
|
Net Function
|
Transmission mode |
LAN / PSTN / ISDN / ADSL |
|
Transmission protocol |
TCP/IP |
|
Connection |
client software/ IE Browser |
|
Client/IE |
Remote preview, recording,
playback, control, support Dynamic
|
|
Alerts |
Equipment |
support alarm box, RS232/485
|
|
Alarm event |
motion detection, video
signal loss, sensor input |
|
Linkage |
video recording, sound
alerts, alarm box output, phone alert, net
inform |
|
Alarm box |
support multi-protocol,1-12
ch signal input and output |
|
Others |
P/T/Z |
Support
multi-protocol,RS232/485,higspeed dome control
software |
|
Back up |
USB、Network、CD-RW、DVD-RW
backing up |
|
Security |
Multi-lever password,, user
right option, system keyboard lock
|
|
Max channel |
3 cards (12
ch) per PC |
|
Net weight |
100g |
|
Power |
2w |
|
| |
 |
| |
 |
|
|
|
|
|
