G1 Series Speed Dome: AU-G1-SP18A

Intelligent 5" Indoor Speed Dome Camera

AU-G1-SP18A (Day/Night)









  • 18X Optical Zoom 1/4" Ex-View HAD CCD

  • 480 TV Lines, f4.1-73.8mm

  • Day/Night Function 0.7 Lux (Day), 0.01 Lux (Night)

  • 360 Continuous Pan Rotation


  • Operation temperature from 0C to 50C

  • 5-inch ABS Housing

  • Auto Iris & Focus

  • Pan speed 0.5~18/sec

  • Tilt speed 0.5~18/sec

  • AC 24V input

  • Auto Pan function between 2 preset positions

  • OSD Function (53 OSD Messages)

  • Sony Original Camera

  • RS 485 communication

  • 16 Preset Positions


  • Auto-adjustment of P/T speed proportionally to zoom factor

  • Low Noise Design, High-Speed PTZ device

  • Multiple controlling protocol

  • Express-mount construction for a simple installation and quick maintenance


Model AU-G1-SP18A
Effective Pixels 752(H) x 582(V)
Pickup-Device Original Sony 18X Zoom 1/4" Ex-View HAD CCD
Scanning Area 3.6mm(H) x 2.7mm(V); 1/4" CCD
Video Output 1.0Vp-p 75 Ohm BNC
Horizontal Resolution 480 TV Lines
Minimum Illumination 0.7 Lux (Day), 0.01 Lux (Night)
S/N Ratio More than 50 db
Iris Auto
Focus Auto / Manual
Focal Length f4.1 ~ 73.8mm
Zoom Ratio 18X Optical Zoom x 12
White Balance Auto
BLC ON/OFF
Panning Range 360 endless
Pan Speed 0.5 - 18 / sec
Tilt Range 0 ~ 100
Tilt Speed 0.5 - 18 / sec
Preset Position 16 Preset Positions
Controls Pan, Tilt, Preset Positions
OSD (On Screen Display) Yes (Device ID, Camera Function ... etc)
Auto Pan ON/OFF; between 2 presets
Communication RS485
Video Source Protection Yes
Communication Protection Yes
Power Source Protection Yes
Power Source Mode AC24V
Operation Temperature 0C ~ 50C

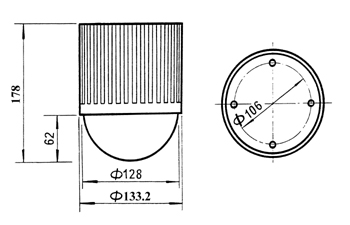

Dimensions 133.2 x 178mm (H)
Weight Approx 1.4Kg
